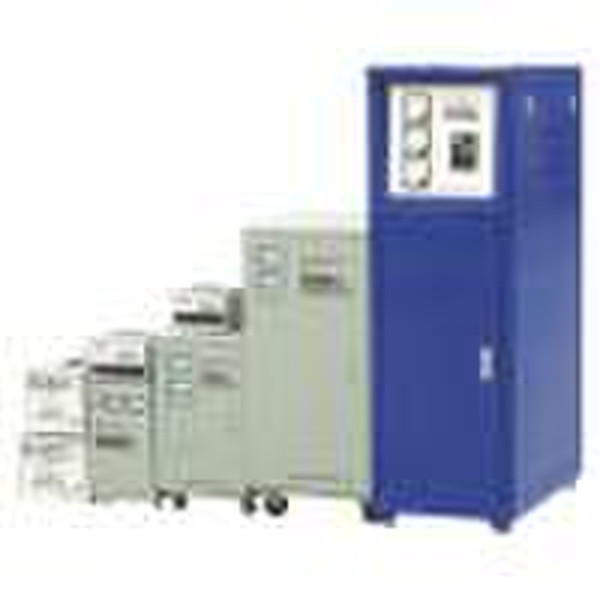

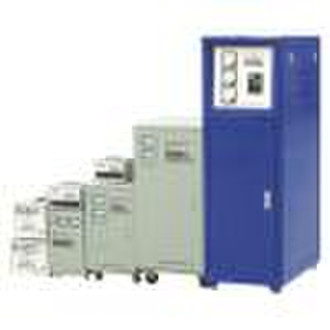

AC Automatic Voltage Regulator

SVC type automatic voltage regulator: SVC-500VA, SVC-1000VA, SVC-1500VA, SVC-2000VA, SVC-3000VA, SVC-5000VA, SVC-8000VA, SVC-10000VA, SVC-15000VA, SVC-20000VA, SVC-30000VA, SVC-45000VA, and SVC-60000VASVC single-phase high accuracy full automatic AC voltage stabilizer is one of the key products of our company. It consists of contact type self-coupling voltage regulator, servo motor, automatic control circuit and other parts. When the voltage of the network is not steady or the load varies, the automatic sampling control circuit will make a signal to drive servomotor to adjust the position of carbon brush of the self-coupling voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state.Parameters: Input voltage: 150-250V (1P)Output voltage: 220V or 110VStabilization accuracy: 220V±3% or 110V±6% Frequency: 50Hz/60Hz Debug time: ≤1s (with input voltage variation of 10%) Overload power factor: 0.8Efficiency: ≥90% Dielectric strength: 1,500V/min Voltage over voltage: 246±4V Ambient temperature: -10±40°CRelative humidity: ≤ 95% Temperature rise: lower than 60°CWave form distortion: no additional waveform distortionInsulation resistance: ≥2MΩ
