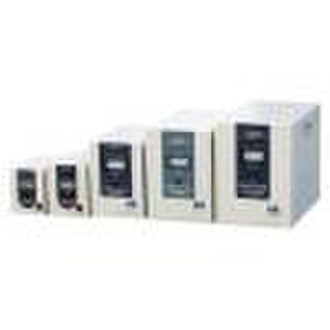

AC Automatic Voltage Regulator

TND type voltage regulators: TND-500VA, TND-1000VA, TND-1500VA, TND-2000VA, TND-3000VA, TND-3000VA, TND-5000VA, TND-7000VA, TND-8000VA, and TND-10000VATND type voltage regulator is developed on the basis of SVC. It not only bears all the characteristics of SVC but also has advantages of elegant appearance, luxury, and economy.Parameters: Input voltage: 150-250V (1P)Output voltage: 220V or 110VStabilization accuracy: 220±3% or 110V±6% Frequency: 50Hz/60Hz Debug time: ≤1s (with input voltage variation of 10%) Overload power factor: 0.8Efficiency: ≥90% Dielectric strength: 1,500V/min Voltage Over voltage: 246±4V Ambient temperature: -10±40°CRelative humidity: ≤95% Temperature rise: lower than 60°CWave form distortion: no additional waveform distortionInsulation resistance: ≥2MΩ
